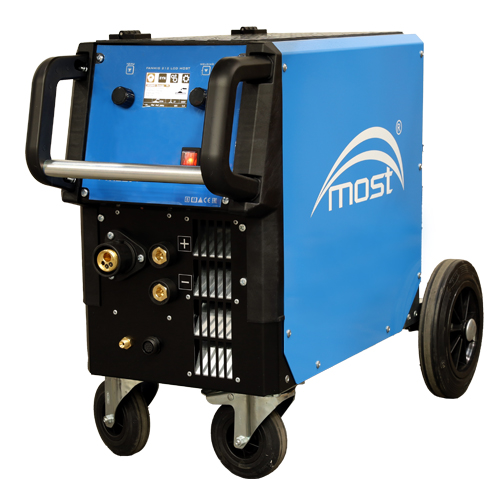

FANMIG 212 LCD is a cutting edge semi-automatic welding inverter machine
designed for MIG/MAG welding, TIG DC (scratch start) and MMA coated electrode welding. The device operates synergic or manual mode and includes a wide range of programmes for steel, stainless steel and aluminium. Programms for MIG brazing with CuSi3 0,8 mm and 1,0 mm wires are also available. FANMIG 212 LCD is a compact machine: power source and wire feeder are there in the same body. On the rear shelf there is a place for gas cylinder (max. 120 cms high).
The device is powered from a single-phase 230V. A PFC (Power Factor Correction) filter has been included in the device. The advantage of an inverter with PFC are: higher energetic effectiveness, lower load for electric network, greater tolerance to current fluctuations and less interference generated by the device.
The 4-rolls wire feeder enables wire welding with 15 kg / K300 spools.
Recommended steel wire diameters are 0.8 - 1.0 mm and 1.0 mm for aluminium.
After change to the polarisation it is possible to apply self-shielding flux cored wire 0,8 or 0,9 mm.
Main applications:
Control panel equipped with display presents text messages. Parameter setting is executed with two knobs used both for choosing and confirming functions or values.
The device is supplied with a ground cable and for coated electrode welding MMA, a gas hose and a manual booklet, standard rolls for 0.8-1.0 mm steel wire
| Parameter | Unit | Value |
| Electrical power supply | V/ Hz | 1x230/ 50-60 |
| Welding current range |
||
| MIG/MAG | A | 25-200 |
| TIG | 10-200 | |
| MMA | 10-200 | |
| Open circuit voltage (MMA) U0 | V | 67 |
| Fuse | A | 16 C (slow) |
| Current Ieff | A | 16 |
| Current I1max | A | 30,5 |
| Duty cycle | ||
| MIG/MAG | A/% | 200 A/30%; 150 A/60%; 130 A/100% |
| TIG | 200 A/35%; 160 A/60%; 140 A/100% | |
| MMA | 200 A/25%; 140 A/60%; 120 A/100% | |
| Wire feeding speed | m/min | 1,5 – 17,0 |
| Insulation class | F | |
| Protection class | IP 23S | |
| Rolls | 4 x 30/22 | |
| Dimensions | mm | 474x911x670 |
| Weight | kg | 44,5 |
| Catalogue no. | 51 00 023700 | |
Device assembly:
The device is supplied with earth cable for coated electrode welding, a gas hose and a user's manual, standard rolls for 0,8-1,0 mm steel wire.
Additional welding torches and accessories (optional):
Accessories for aluminium welding and brazing (recommended wire diameter: 1,0 mm, AlMg5):
Warranty: 24 months.
