Read more ...We are a producer of high quality welding consumables and abrasive materials at reasonable price. We also own a bandsaws blades welding manufactury.
Please feel free to contact us.
Approvals: MOST SG2 ITS TÜV, DB, GL, DNV, PRS MOST SG3 ITM TÜV, DB, DNV, PRS
Offer: Bandsaw blades of various parameters for all kinds of band saws.
Offer: Abrasive materials of all kinds and destination.

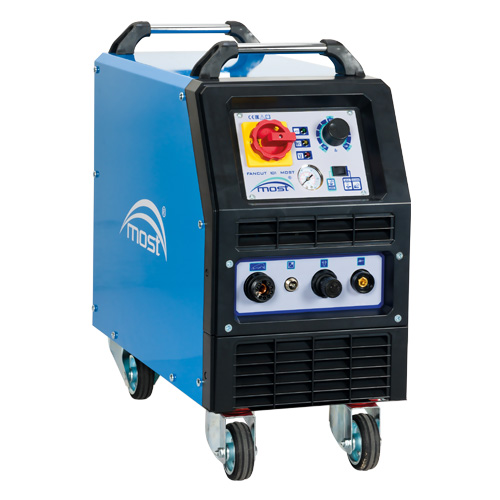

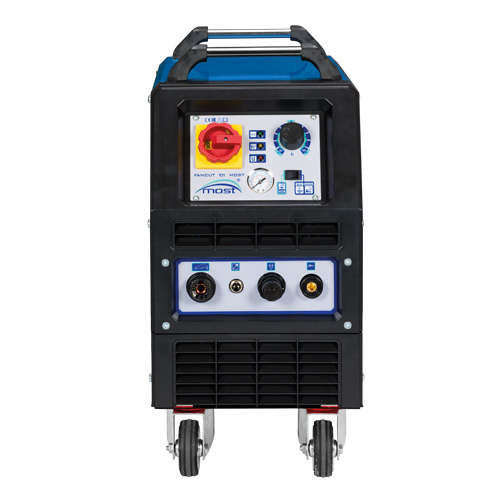

FANCUT 101 is modern, lightweight devices for cutting metal by air plasma.
| Model | FANCUT 101 MOST |
| Main voltage: -10% / + 15% | 3x400 V / 50-60 Hz |
| Protect network | 20 A |
| Max. current I₁ | 21,5 A |
| Max. efficiently current I1eff | 15 A |
| Power supply (60%) | 16 kVA |
| Cutting current range | 8-100 A |
| Open circuit voltage U0 | 310 V |
| Cutting current (at 100% duty cycle) I2 | 75 A |
| Cutting current (at 60% duty cycle) I2 | 100 A |
| Max. thickness quality cutting carbon steel | 30 mm |
| Recommended thickness quality cutting carbon steel | 22 mm |
| Separating cut | 40 mm |
| Duty air pressure (for torch - length 6 m) | 5,5-6,0 bar |
| Plasma gas | Compressed air |
| Maximal air pressure | 10 bar |
| Air consumption | 200 l/min |
| Arc ignition | BACK STRIKING |
| Welding power regulation | Steeples |
| Insulation class | F |
| Cover protection class | IP 23 |
| Standard | EN 60974-1; -10 |
| Dimensions (w x l x h) | 610x340x680 mm |
| Weight | 39 kg |
Catalogue no.
FANCUT 101 MOST - 59 00 300101
Available accessories:
Caliper PT-80 Compass Z0134AA - 59 25 000102
Caliper PT-100 Compass Z0143ZA - 59 25 000104
Scarf Bevel Cutting set Bevel Tool 51880 - 59 25 000106
Air filter AT-1000 - 59 00 240036
Paper filter element AT-1000 - 59 00 240037
Air filter adapter AT-1000 (in-out nipples) - 59 00 240038

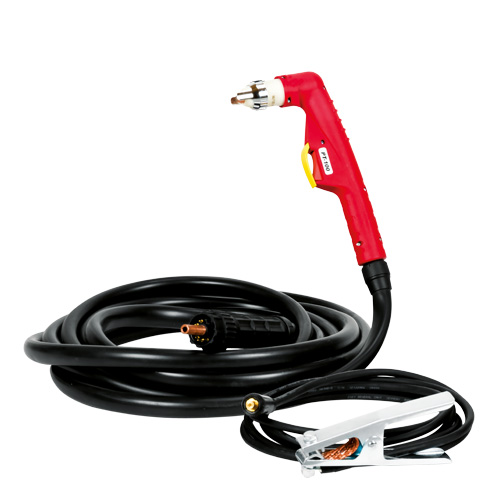

Delivery set includes plasma cutter torch PT-80/PT100 (6 m long), earth cable, mains cable and standard torch consumables kit.
