* Fluid pressure and flow below the minimum will affect gun performance.

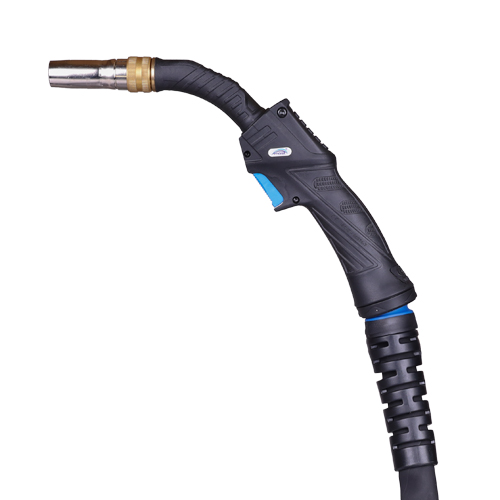

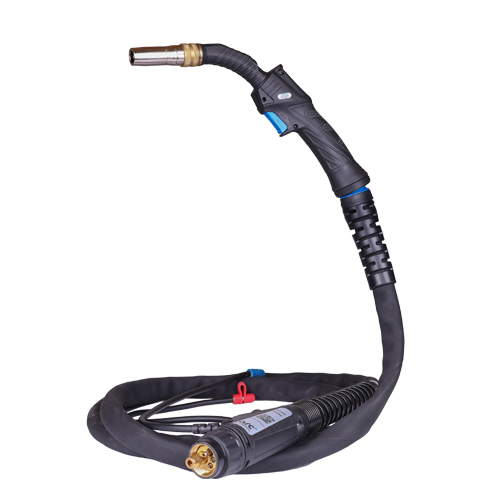

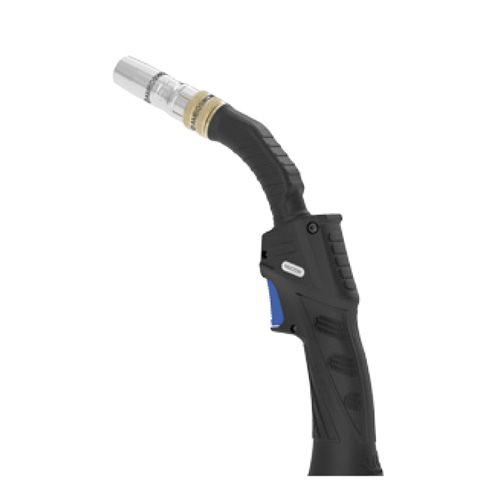

| Technical data IEC/EN 60974-7 | M6W MOST | ||
| Cooling | liquid | ||
| Rating | Max. A | Puls | |
| CO2 | at 1.6 kW cooler | 550 A | 380 A |
| at 1.2 kW cooler | 530 A | 350 A | |
| MIX | at 1.6 kW cooler | 530 A | 380 A |
| at 1.2 kW cooler | 480 A | 350 A | |
| Duty cycle | 100% | 100% | |
| Wire diameter | 0,8-2,0 mm | ||
|
Minimum liquid flow*
|
1,5 l/min | ||
| Min. coolant inlet pressure* | 3,0 Bar | ||
| Max. coolant inlet pressure | 5,0 Bar | ||
| Max. coolant inlet temp |
50°C | ||
| Working temp range | -10…+40°C | ||
| Length / Catalogue No. |
(3 m) 55 08 305113 (4 m) 55 08 305114 (5 m) 55 08 305115 |
||
* Fluid pressure and flow below the minimum will affect gun performance.
| Lp. | Replaceable elements |
Catalogue No. |
| A1 | M6OSW conical gas nozzle Ø15* | 55 13 000750 |
| M6OSW conical gas nozzle Ø13 | 55 13 000751 | |
| B | M10x35,5 contact tip | |
| C, C1 | M6W 28,5 mm* contact tip holder | 55 13 003984 |
| M6OSW 32,5 mm contact tip holder | 55 13 003987 | |
| D | M6OSW insulator | 55 13 003980 |
| E | Liner | |
| 1.1 | M6OSW 45° swan neck | 55 13 014550 |
| 2 | M6x6 screw set | 55 13 006884 |
| 3 | GER 8,7 clamp | 50 15 000087 |
| 4 | Blue hose 5x1,5 | 51 13 007120 |
| 5 | Cable for M6W insert 3 m | 55 13 006403 |
| Cable for M6W insert 4 m | 55 13 006404 | |
| Cable for M6W insert 5 m | 55 13 006405 | |

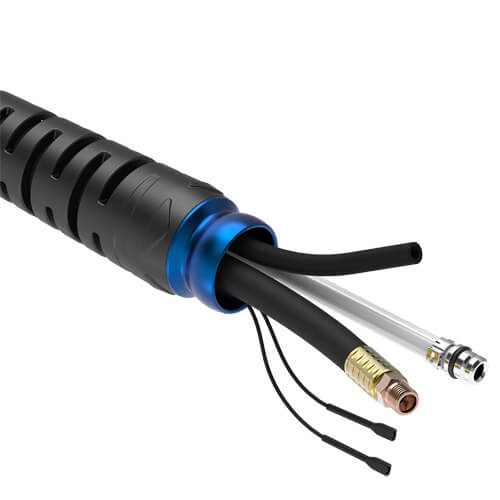

| 6 | Power-water cable M6W 3 m | 55 13 006413 |
| Power-water cable M6W 4 m | 55 13 006414 | |
| Power-water cable M6W 5 m | 55 13 006415 | |
| 7 | Hoop | 55 13 006830 |
| 8 | M6W torch stiffener | 55 13 006831 |
| 9 | M6W cable cover set 3 m | 55 13 006423 |
| M6W cable cover set 4 m | 55 13 006424 | |
| M6W cable cover set 5 m | 55 13 006425 | |
| External cable cover (m) | 55 13 007201 | |
| 10 | M6W handle | 55 13 006660 |
| 11 | M6W standard trigger | 55 13 006675 |
| 12 | M6W long trigger | 55 13 006676 |
| 13 | M6W key | 55 13 006685 |
| 14 | M6W gas nozzle clamp | 55 13 006693 |

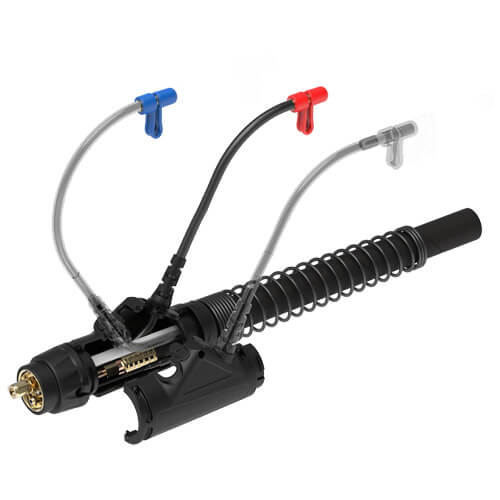

| 15 | M6W euro plug spring | 55 13 006827 |
| 16 | Euro plug spring nut | 55 13 006680 |
| 17 | Euro plug inner ring | 55 13 006681 |
| 18 | Screw set | 55 13 006684 |
| 19 | Exit to a hose | 55 13 006686 |
| 20 | Red hose 5x1,5 | 51 13 007115 |
| 21 | Red hose plug | 55 13 006838 |
| 22 | Blue hose plug | 55 13 006840 |
| 23 | M6W euro plug housing | 55 13 006688 |
| 24 | M4x0,7 screw | 55 13 006683 |
| 25 | M6W euro plug nut | 55 13 006519 |
| 26 | Euro plug | 55 13 006687 |
| 27 | Special insert nut | 55 13 004300 |
