Approvals: MOST SG2 ITS TÜV, DB, GL, DNV, PRS MOST SG3 ITM TÜV, DB, DNV, PRS
Offer: Bandsaw blades of various parameters for all kinds of band saws.
Offer: Abrasive materials of all kinds and destination.
• 20% lighter - After a long day’s work you really will feel the difference.
• Perfect Balance - A great tool for all day welding and ideal for positional welds.

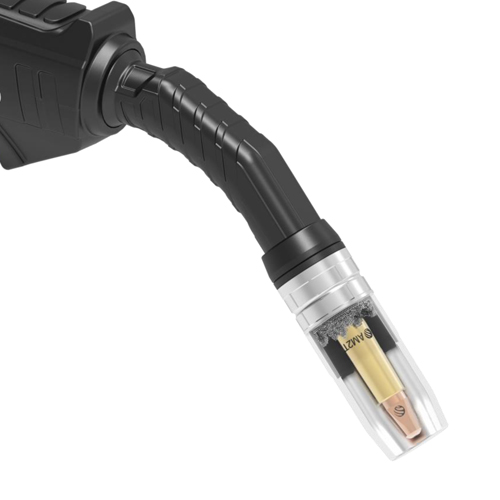

• SIC Technology - Spatter created by the arc is contained with in a patented chamber that collects the molten metal droplets.

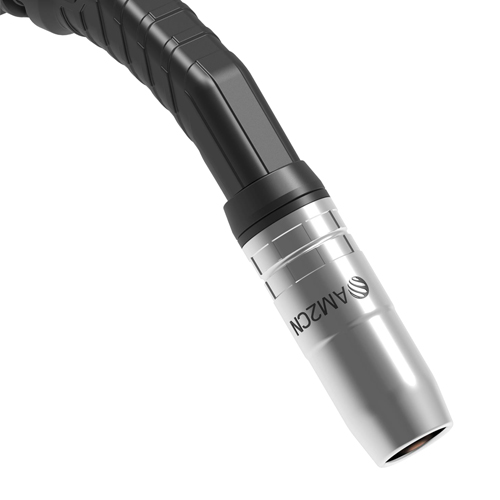

• Damage Resistant Necks - Armour plated so it can stand the knocks.

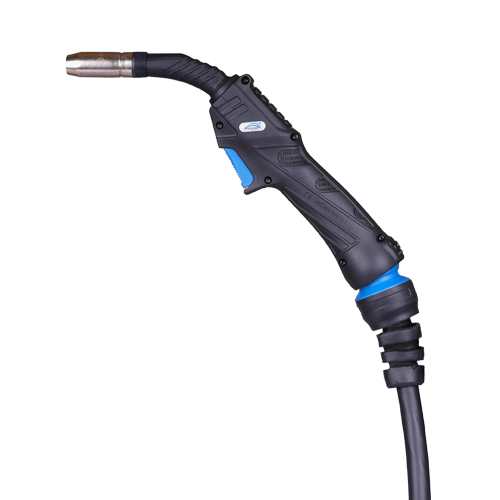

| Technical Data IEC/EN 60974-7 | M1 MOST |
| Cooling Method | Air-Cooled |
| Ratings | |
| CO2 | 180 A |
| Mixed Gas M21 | 150 A |
| Duty cycle | 60% |
| Wire Size | 0,6-1,0 mm |

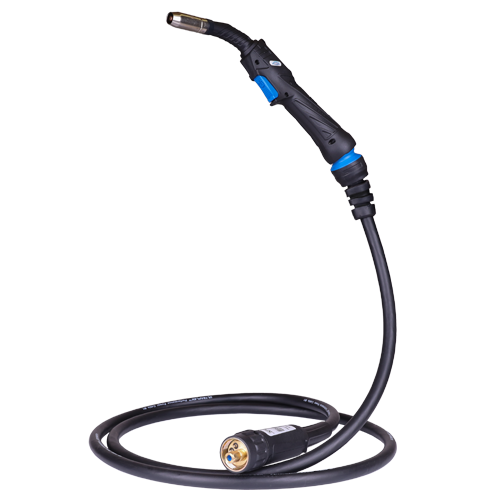

| Length / Catalogue No. |
(3 m) 55 08 305080 (4 m) 55 08 305081 (5 m) 55 08 305082 |

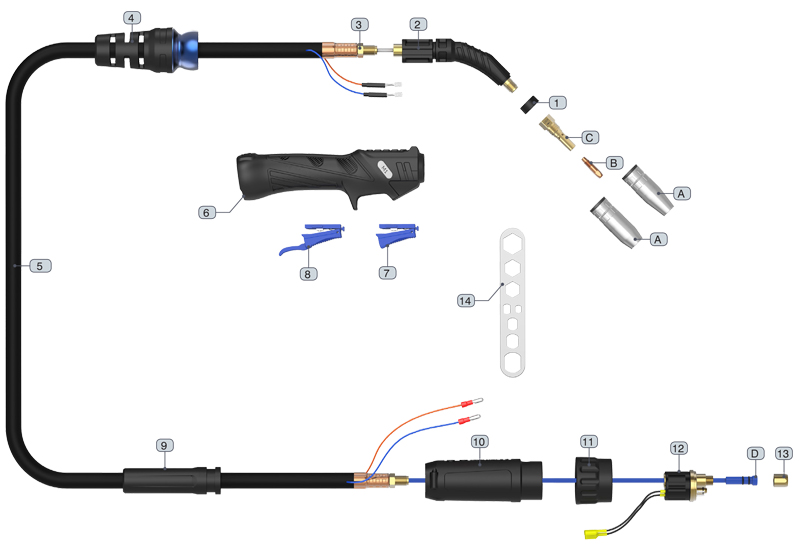

| Lp. | Item | Cataloque No |

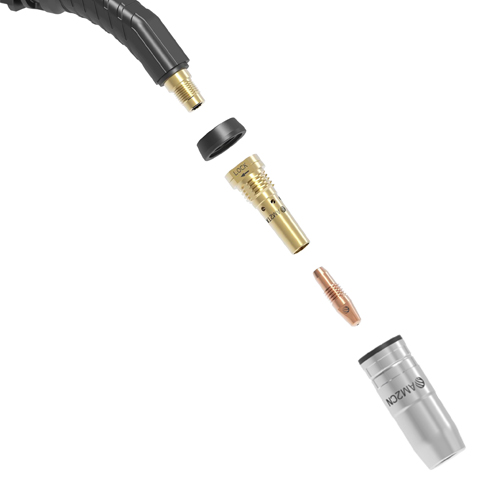

| A | Conical nozzle M1 Ø12 | 55 13 000730 |
| Conical nozzle M1 Ø10,5 | 55 13 000731 | |

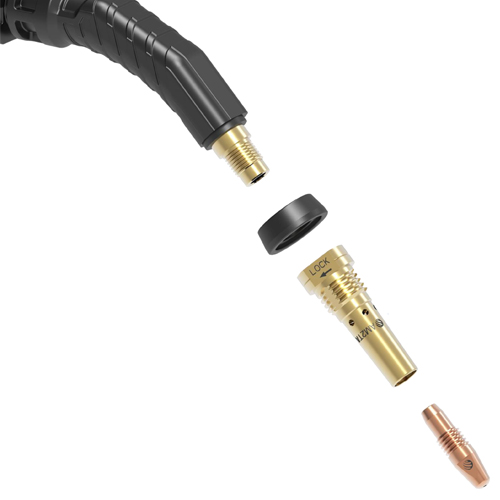

| B | Contact tip M1 M6 | |

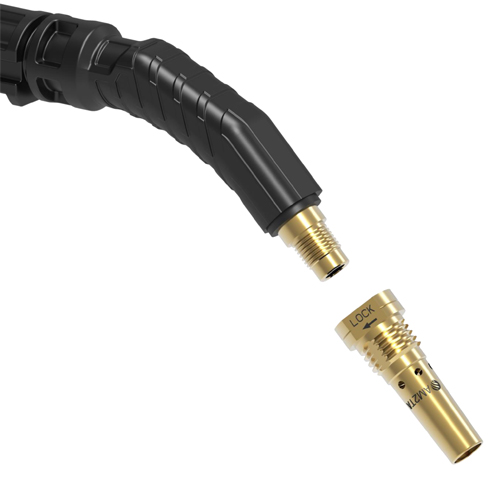

| C | Contact tip holder M1 | 55 13 003873 |
| D | Wire liner | |
| 1 | Insulator M1 | 55 13 003870 |
| 2 | Swanneck M1 | 55 13 014570 |
| 3 | Lock nut | 55 13 004309 |
| 4 | Cable support | 55 13 006872 |

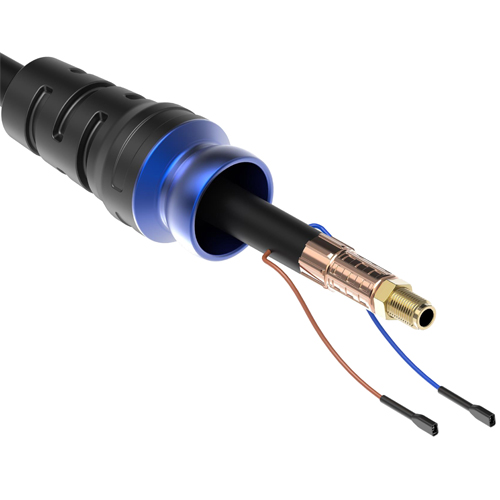

| 5 | Outer liner assembly M1 3 m | 55 13 016102 |
| Outer liner assembly M1 4 m | 55 13 016103 | |
| Outer liner assembly M1 5 m | 55 13 016104 | |
| 6 | Handle | 55 13 006661 |

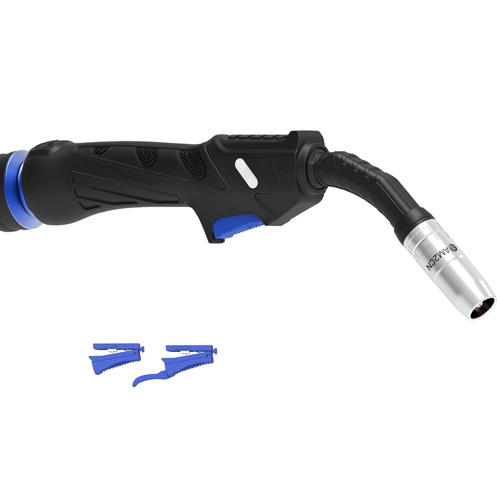

| 7 | Microswitch standard trigger assembly | 55 13 006675 |
| 8 | Microswitch extended trigger assembly | 55 13 006676 |
| 9 | Cable support | 55 13 006835 |
| 10 | Housing assembly | 55 13 006689 |
| 11 | Gun plug nut | 55 13 006519 |
| 12 | Euro plug 2 | 55 13 006696 |
| 13 | Liner retaining nut | 55 13 006695 |
| 14 | Wear parts spanner | 55 13 006685 |
