Description
Electrode wire, manganese-silicon, non copper-clad blank, for MIG welding of low-carbon construction, boilers, shipbuilding, and fine-grained carbon-manganese steel. It allows use of high current intensity in arc spray, and low intensity in short-circuit metal transfer.

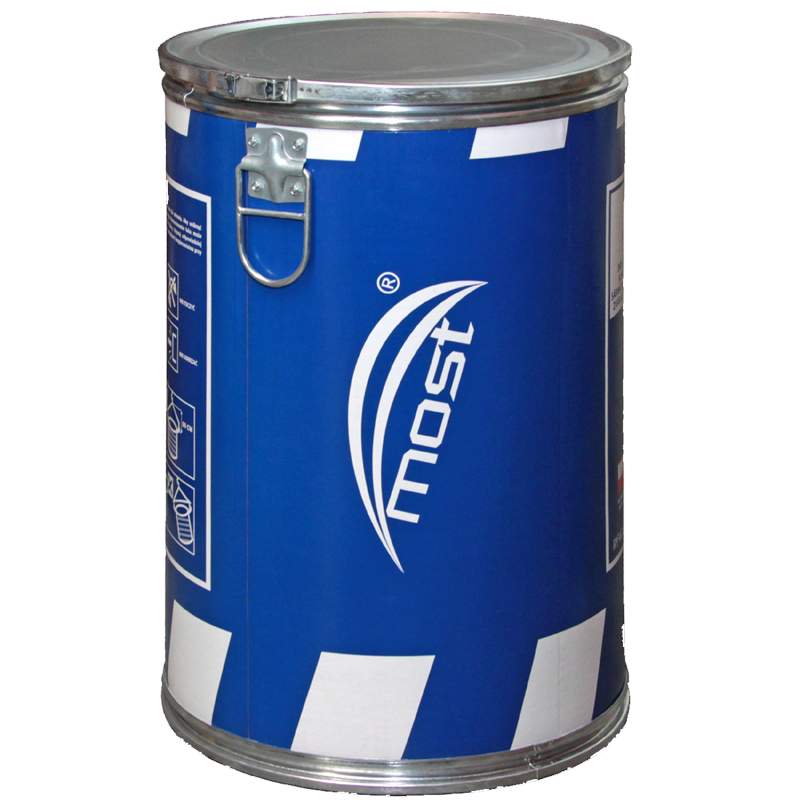

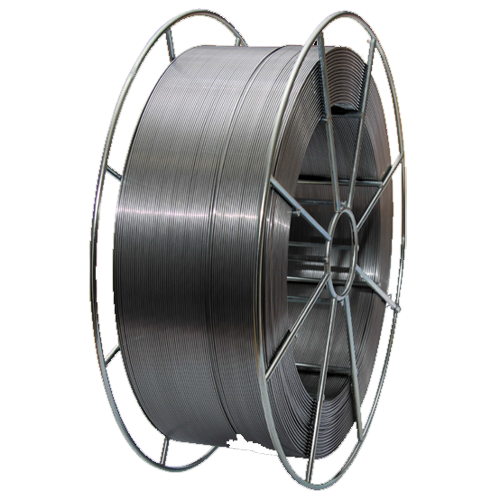

Packages: S200 – plastic spool, B300 – basket spool, barrel.
Shielding gas: CO₂, Ar+CO₂. Welding method: MAG.
Classification
PN-EN ISO 14341-A: G4Z4M/C 3Si1
AWS A5.18: ER70S-6
Werkstoff nr: 1.5125
Welding current
Welding position
Features
Ar+20%CO₂:
Re[N/mm²]=490
Rm[N/mm²]>590
A5>25%
KV ≥ 100 J (0°C)
80 J (-20°C)
Chemical composition [%]
C=0,1;
Si=0,9;
Mn=1,5;
Admittance
TÜV, DB, DNV-GL, PRS,
Diameter and cataloque no
0,8 mm: 11 60 171083
1,0 mm: 11 60 171103
1,2 mm: 11 60 171133
1,6 mm: 11 60 171163
