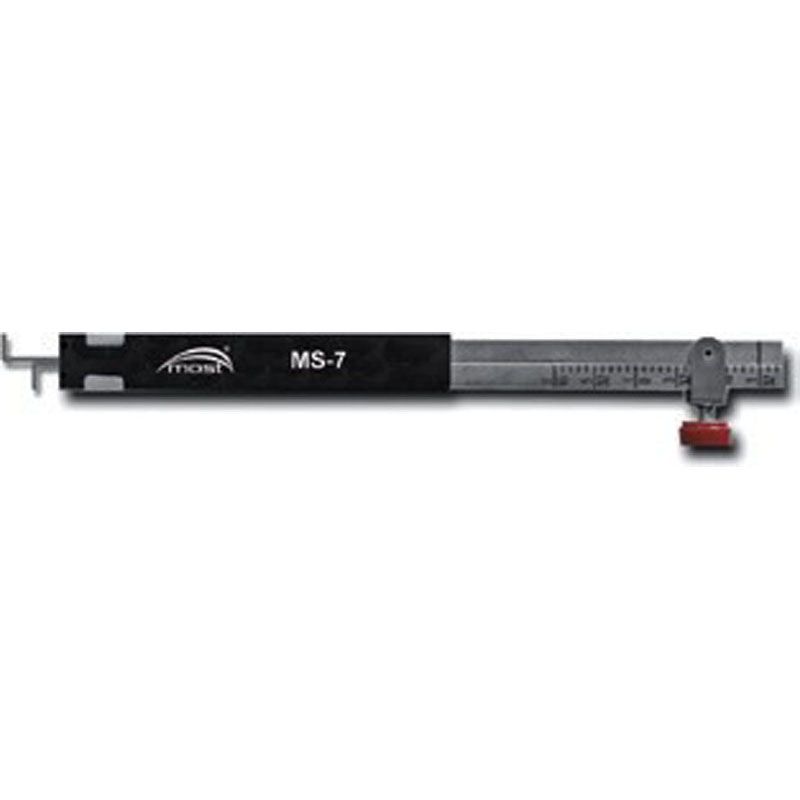

MS 7 Single purpose HI-LO welding gauge

MS 7 Single purpose HI-LO welding gauge

Measure internal alignments of metal sheet edges and the gap
(distance) between sheets being welded, check the gap in the
range between 1.0-4.0 mm, 1 mm increments), determine the
root weld space, eliminate rejects – improve productivity, both
inch and metric version available.
Catalouge No. 70 42 000007

Controlling of readiness of welding parameter allows reducing the manufacturing costs thanks to proper assurance of welding parameters and high efficiency
of filler metal.

The gauges provide high accuracy of measurements:
● misalignment of internal edges of pipes and sheet
metal
● the gap between pieces of sheet metal being welded
● symmetry of filled welds
● the throat of filled weld
● other weld parameters

Characteristics:
● metric pitch
● small size, easy to operate
● made of stainless steel, which provides precision and reliability
● pitch resistant to external factors due to chemical treatment
● it is possible to calibrate gauges individually
